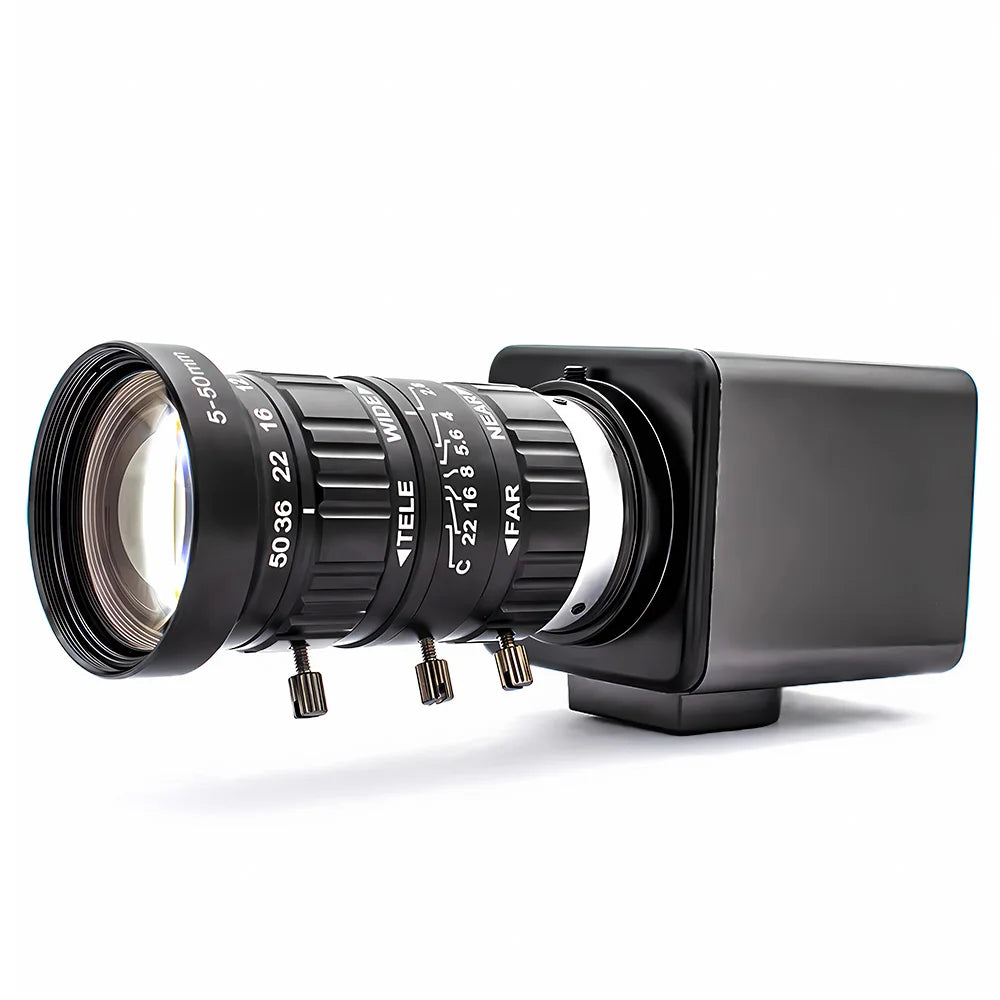

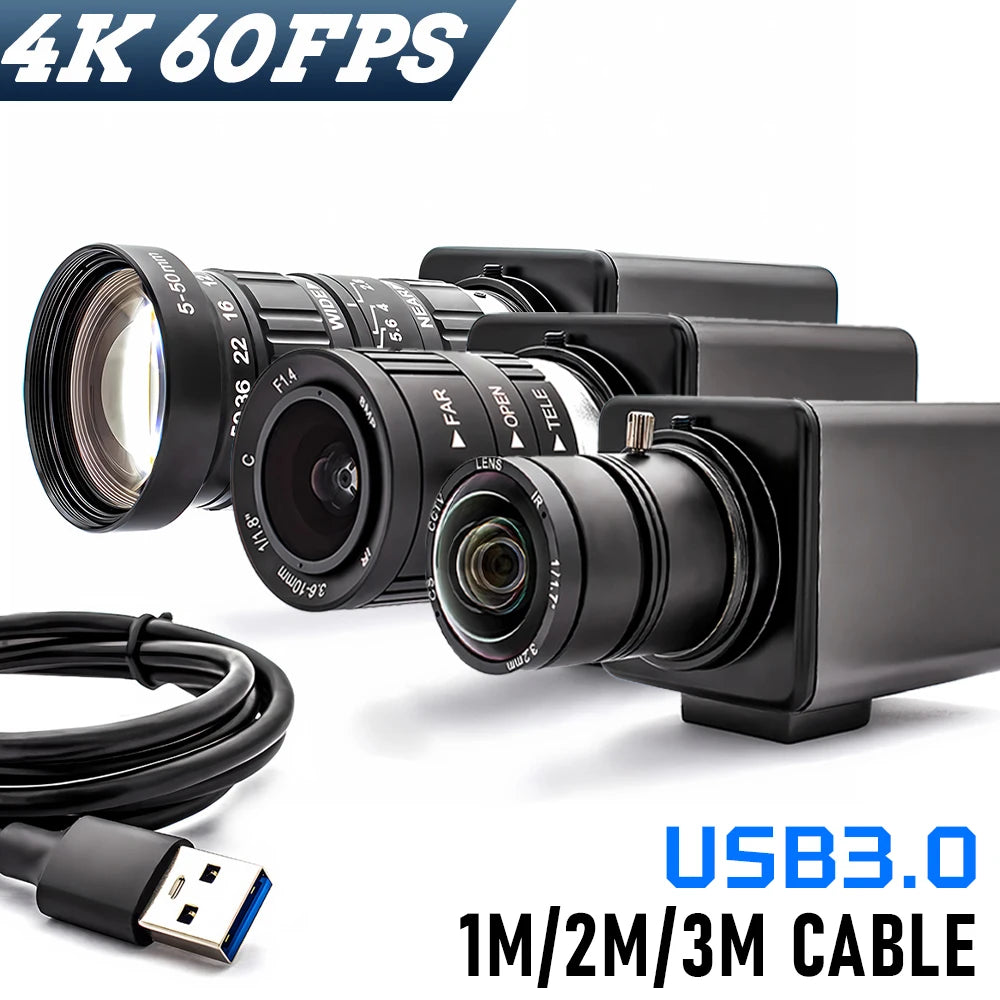

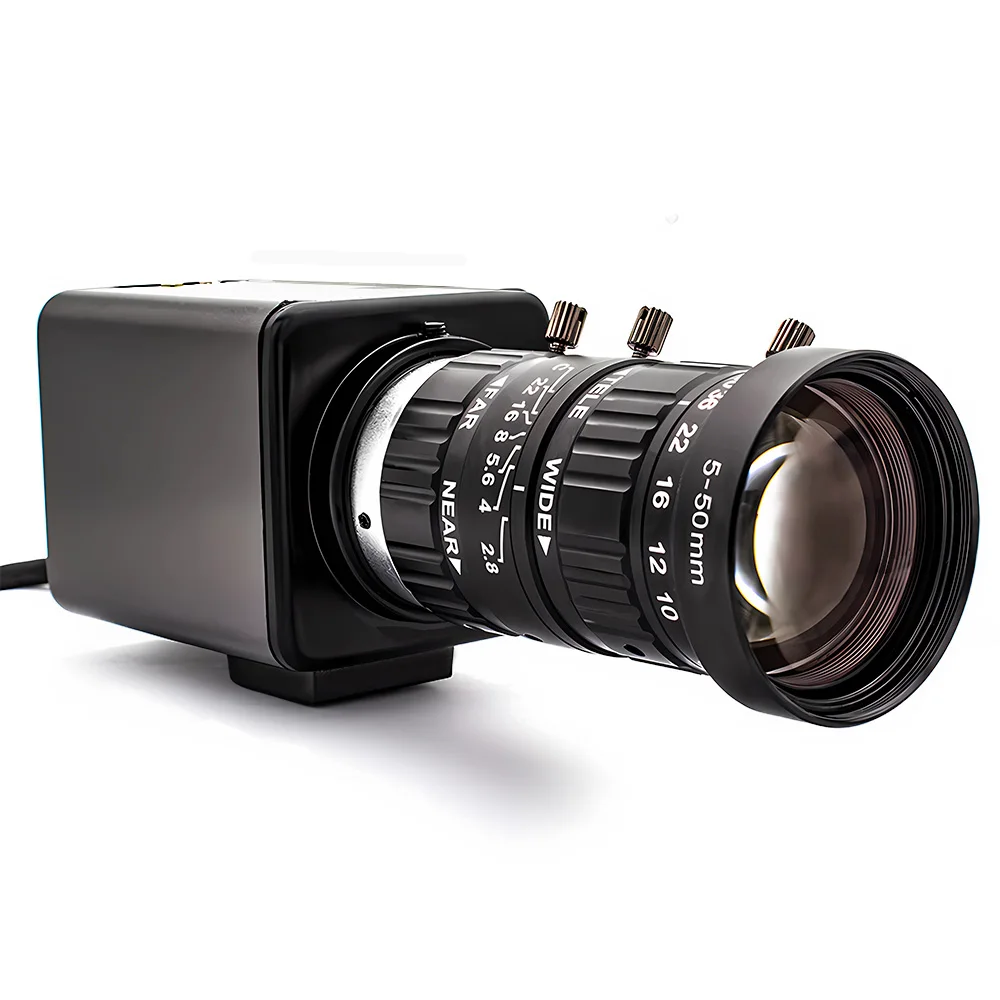

IMX678 USB3.0 Camera 8MP 4K HD 60FPS Industrial Camera Shell With 10X Zoom Varifocal Lens Plug Play UVC Protocol For Fast Moving

IMX678 USB3.0 Camera 8MP 4K HD 60FPS Industrial Camera Shell With 10X Zoom Varifocal Lens Plug Play UVC Protocol For Fast Moving

5-50mm / 2M Cable
$171.54
Sale price  $171.54 Regular price  $171.54
Skip to product information
IMX678 USB3.0 Camera 8MP 4K HD 60FPS Industrial Camera Shell With 10X Zoom Varifocal Lens Plug Play UVC Protocol For Fast Moving

IMX678 USB3.0 Camera 8MP 4K HD 60FPS Industrial Camera Shell With 10X Zoom Varifocal Lens Plug Play UVC Protocol For Fast Moving

$171.54
Sale price  $171.54 Regular price  $171.54
Color
Bundle

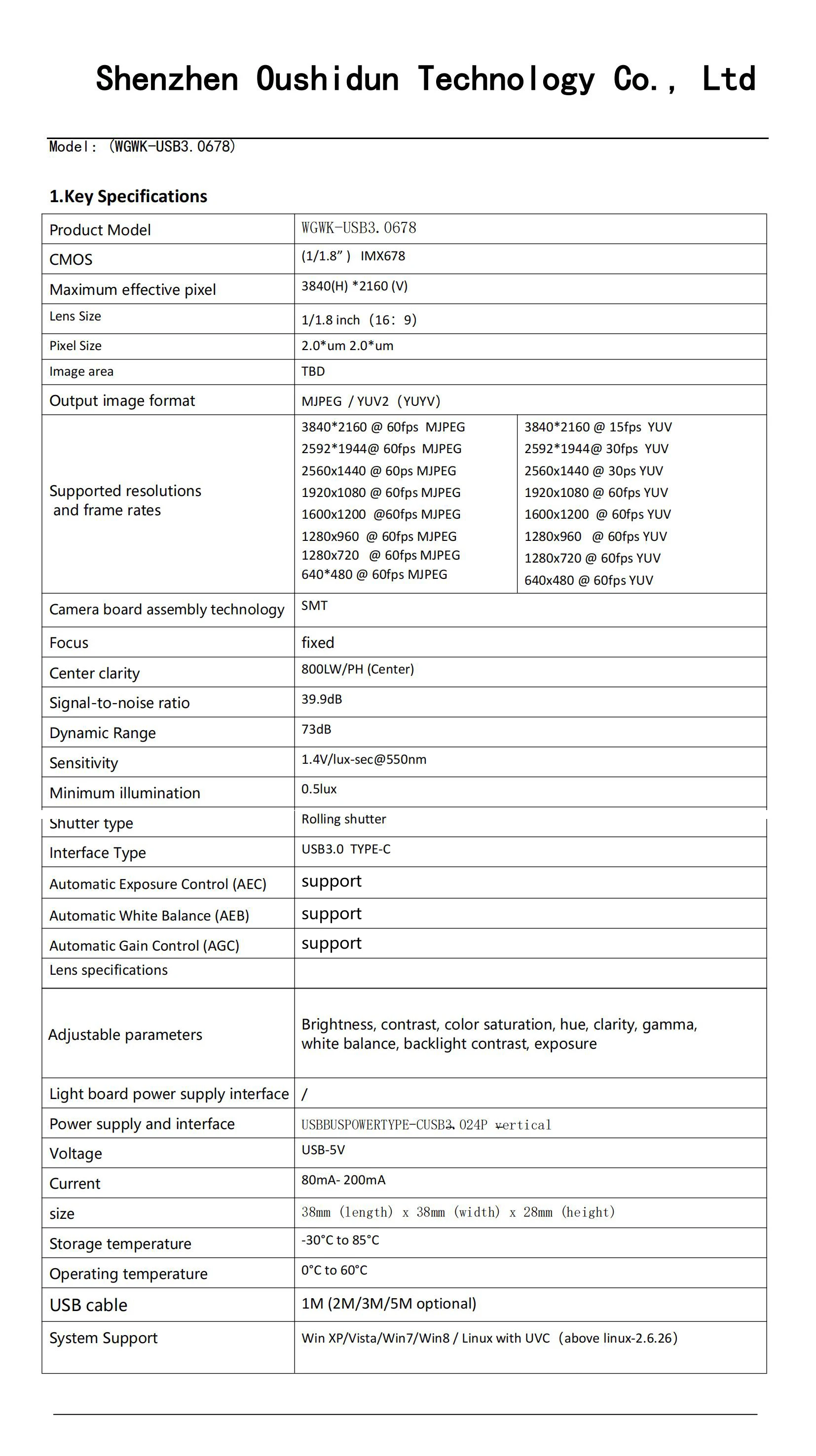

SPECIFICATIONS

Additional Function: Camera Function

Bit Depth: 8Bit

Brand Name: WGWK

CMOS: (1/1.8") IMX678

Certification: CE

Dynamic Range: 73dB

High Definition Support: 4K

High-concerned chemical: None

Image Area: TBD

Image Stabilization: No image stabilization

Inbox adaptor: Yes

Interface Type: USB3.0 TYPE-C

Lens Size: 1/1.8 inch (16:9)

Maximum Effective Pixel: 3840(H)*2160(V)

Minimum illumination: 0.5Lux

Model Number: WGWK-USB3.0678

Operating Temperature: 0°C to 60°C

Origin: Mainland China

Output Image Format: MJPEG / YUV2 (YUYV)

Pixel Size: 2.0*um 2.0*um

Pixels: 8 million

Power Source: Other

Sensor Size: 1/8 inches

Sensor Type: CMOS

Shutter Type: Rolling Shutter

Signal-to-noise Ratio: 39.9dB

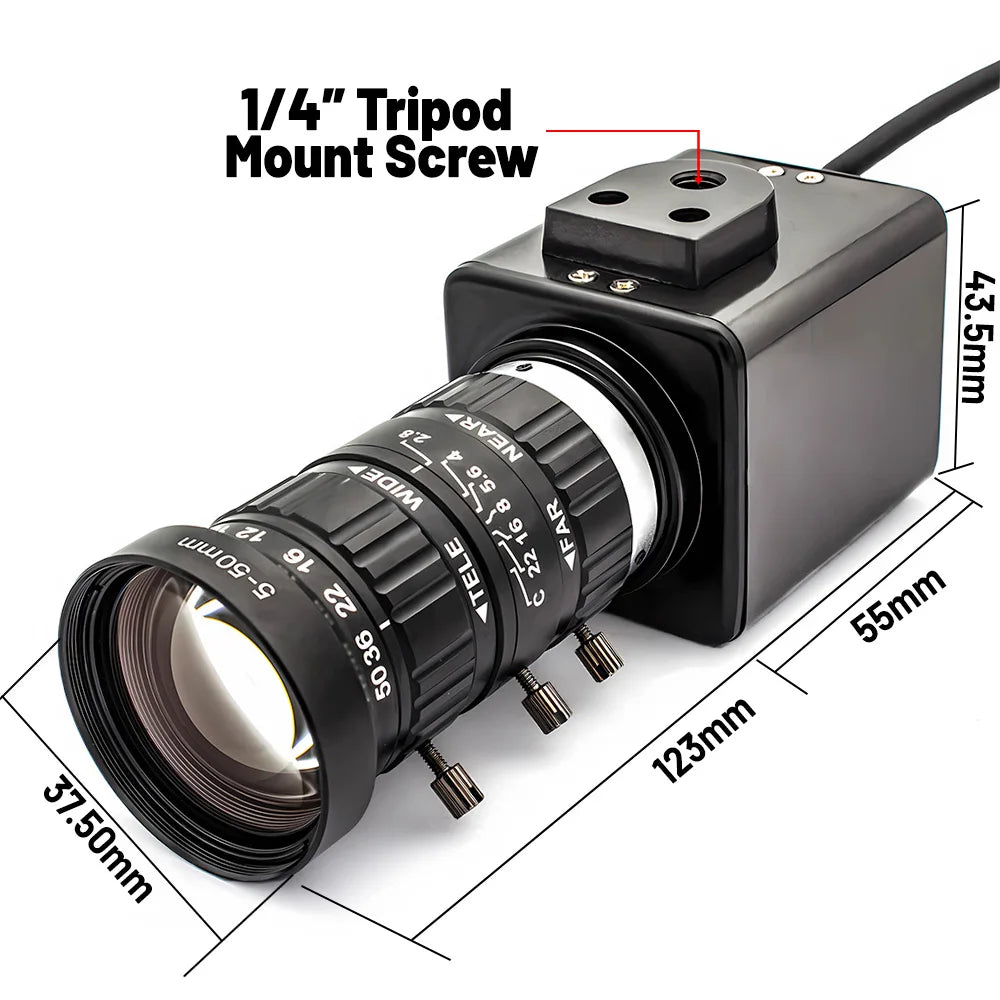

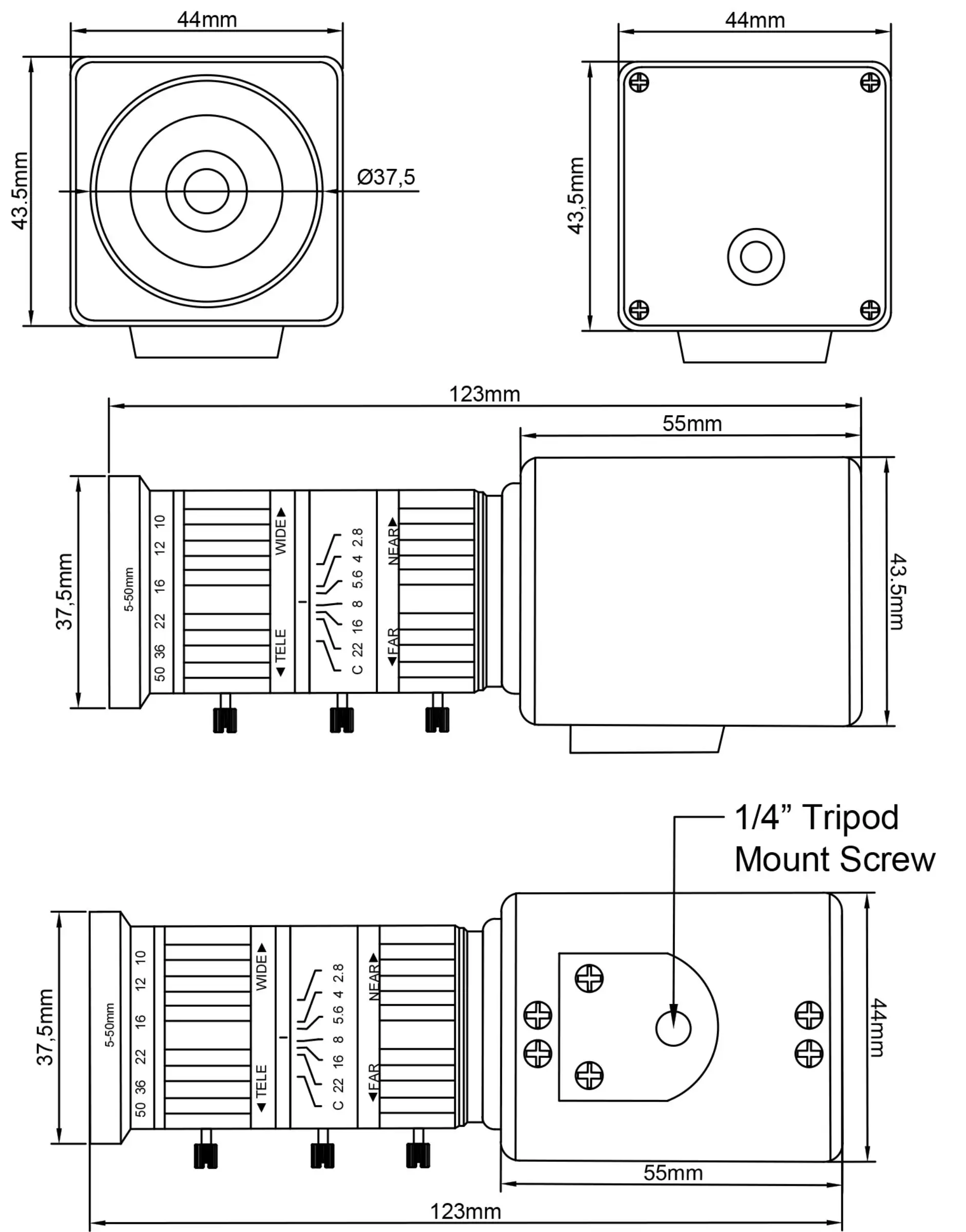

Size: 38mm(length) x 38mm(width) x 28mm(height)

Storage Temperature: -30℃ to 85℃

Supported Resolutions And Frame Rates: 3840*2160@60fps MJPEG 2592*1944@60fps MJPEG 2560*1440@60fps MJPEG

Type: Professional

USB Cable: 1M(2M/3M Optional)

Use: Home

Video Transmission Protocol: Other

Voltage: USB-5V

Weight: 301g-400g



Enhance the flexibility and efficiency of your industrial applications by choosing our customizable industrial cameras! Whether it's the housing design, cable length, lens specifications, or special features, this camera can provide you with tailored solutions.
IMX678 USB3.0 Camera 8MP 4K HD 60FPS Industrial Camera Shell With 10X Zoom Varifocal Lens Plug Play UVC Protocol For Fast Moving

Every frame presented clearly

Our 8MP USB camera features the IMX678 sensor and supports 60FPS high-definition shooting. Whether for live streaming, video conferencing, or capturing professional images, it delivers smooth and detailed visual effects. Ensure you can showcase your best self in any situation.

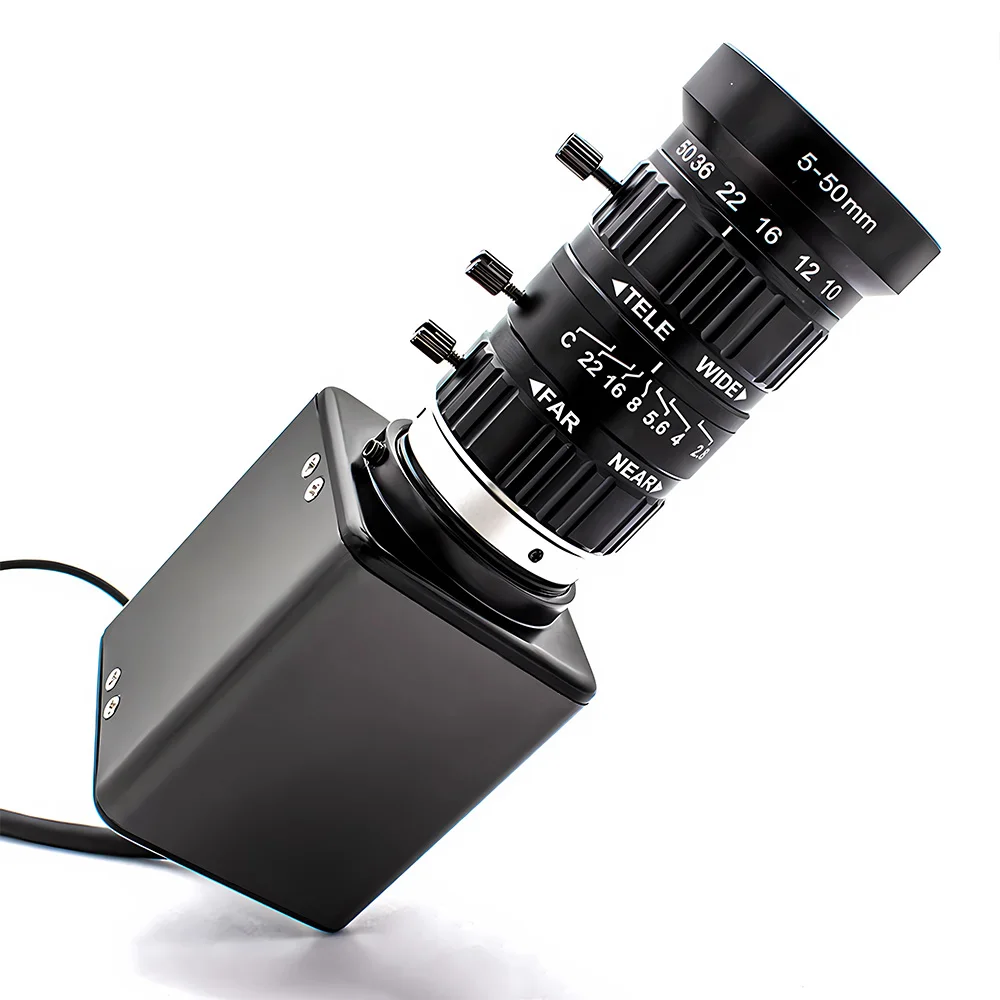

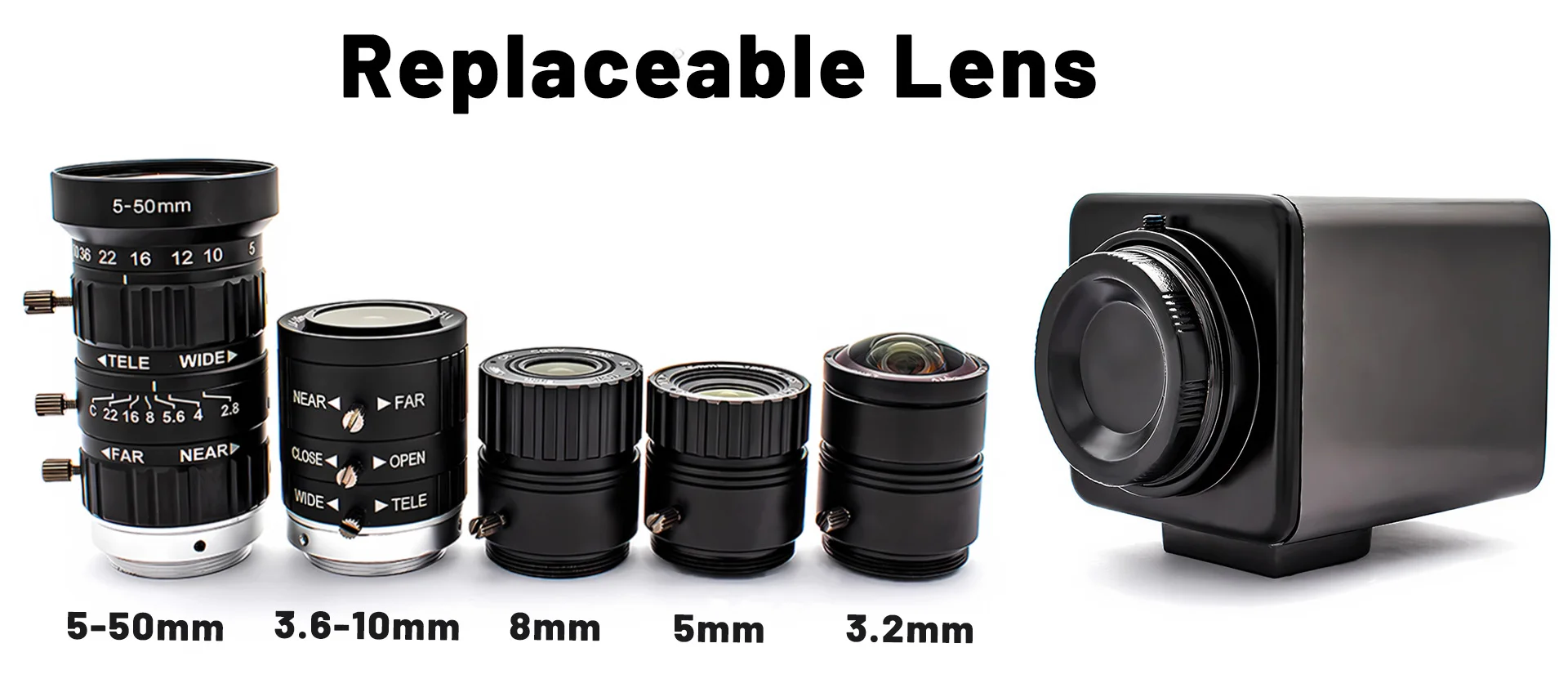

Flexible lens selection to meet diverse needs

We offer a variety of lenses to choose from based on different application requirements. You can quickly switch lenses according to specific scenarios, enhancing flexibility and convenience in use. Whether for wide-angle shots, close-ups, or medium shots, our lenses perfectly adapt to various shooting demands.

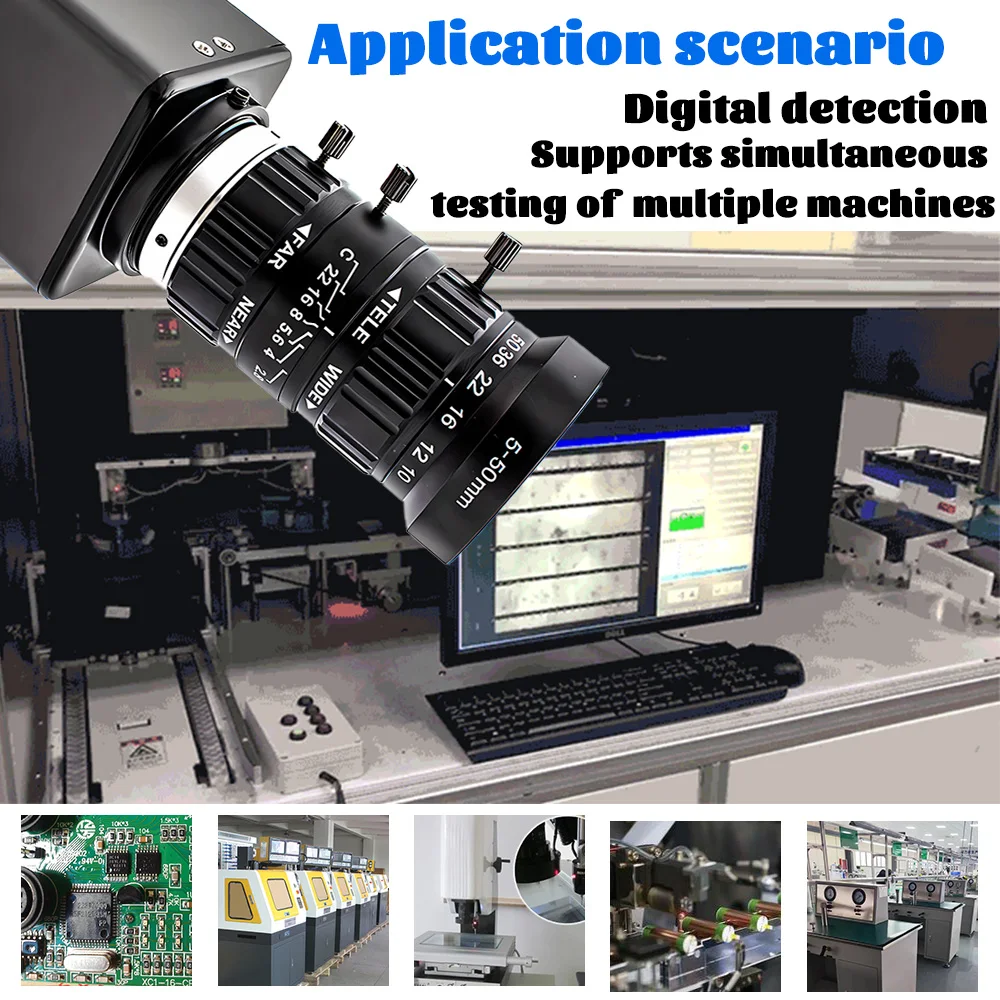

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
vending machine
, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system,
 teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system,
 Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope,
 Medical auxiliary equipment, etc.

Step 1: Install Computer USB Camera Software - amcap

https://drive.google.com/file/d/1ZpJSSVhLD2qGCQusnFoF1JI5uW6IqkBR/view?usp=sharing

(Contact customer service to agree to share this document.)

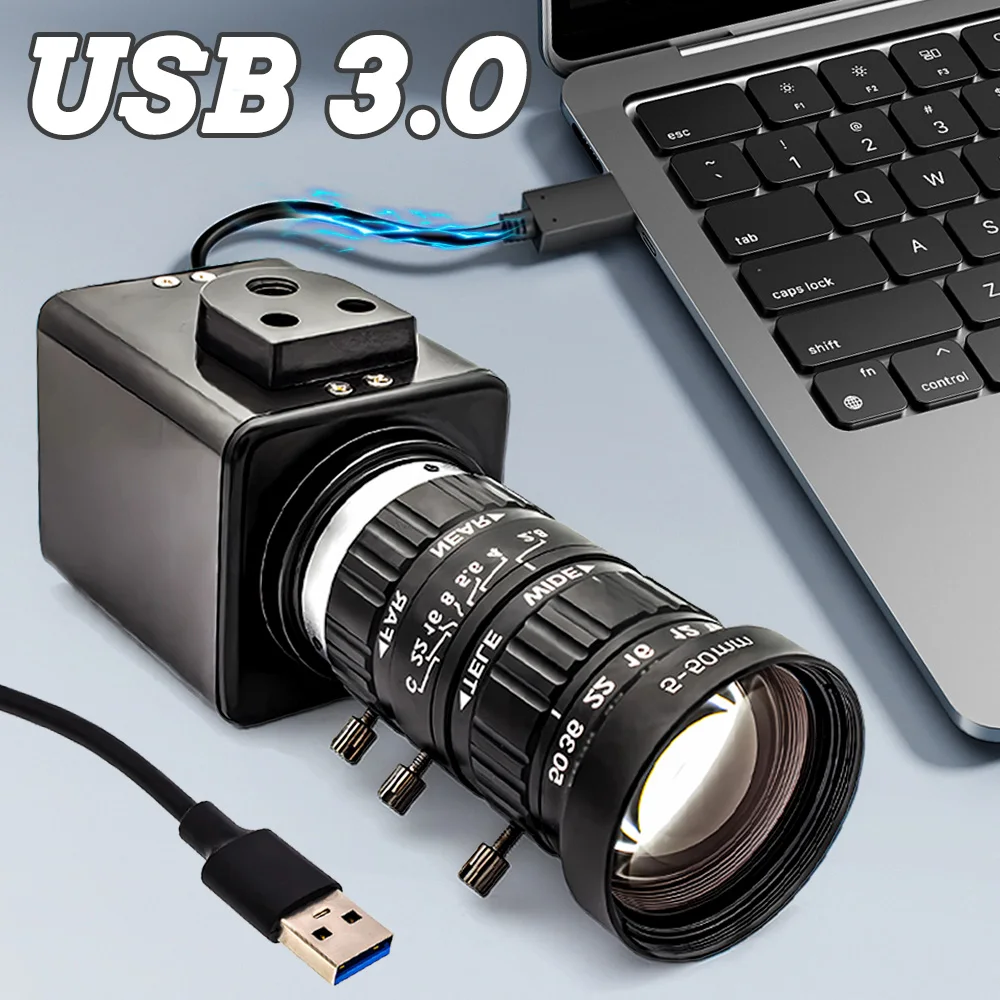

Step 2: Connect the computer using a USB cable.


Step 3: Adjust the focal length to achieve a clear image.
